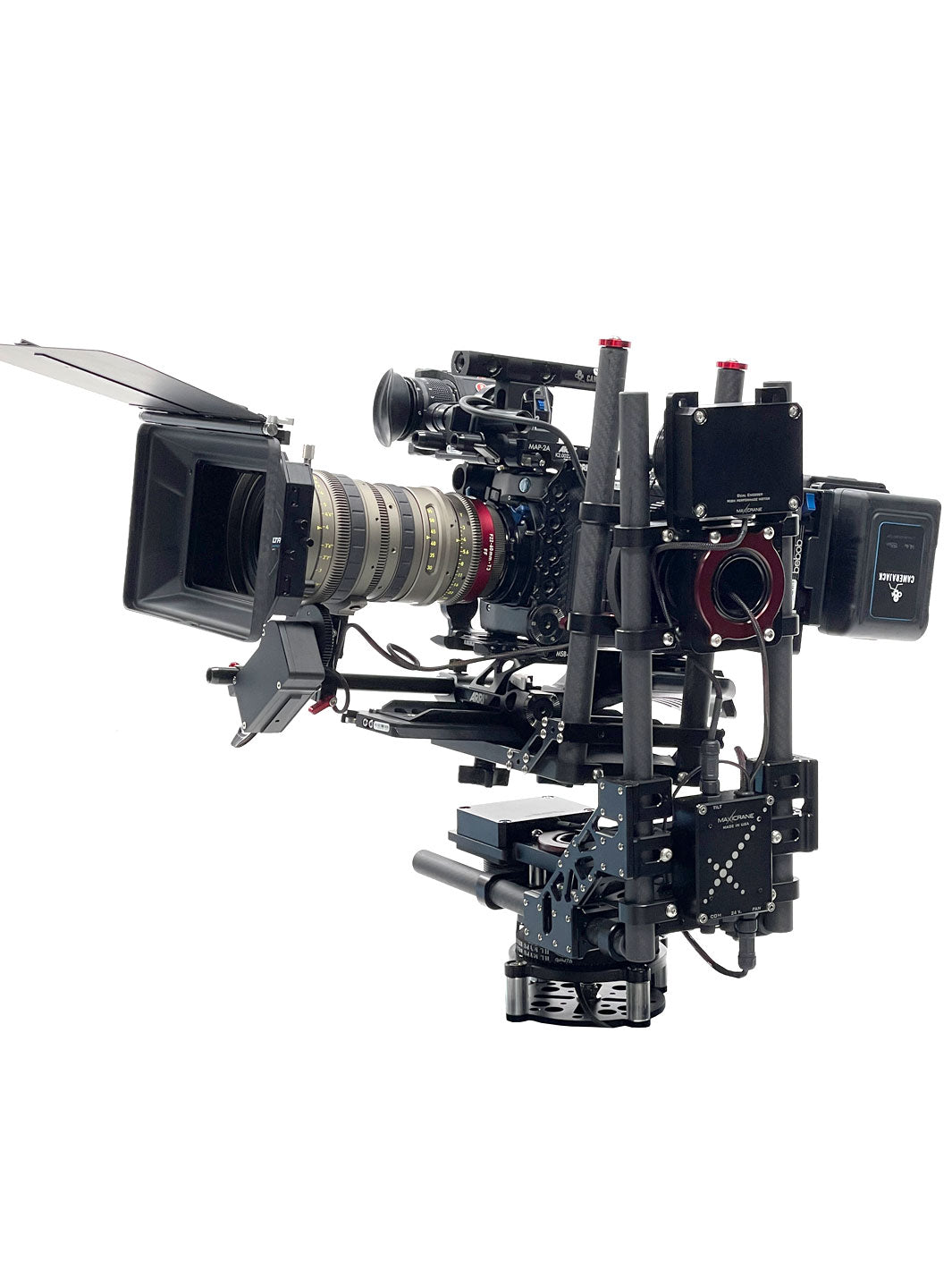

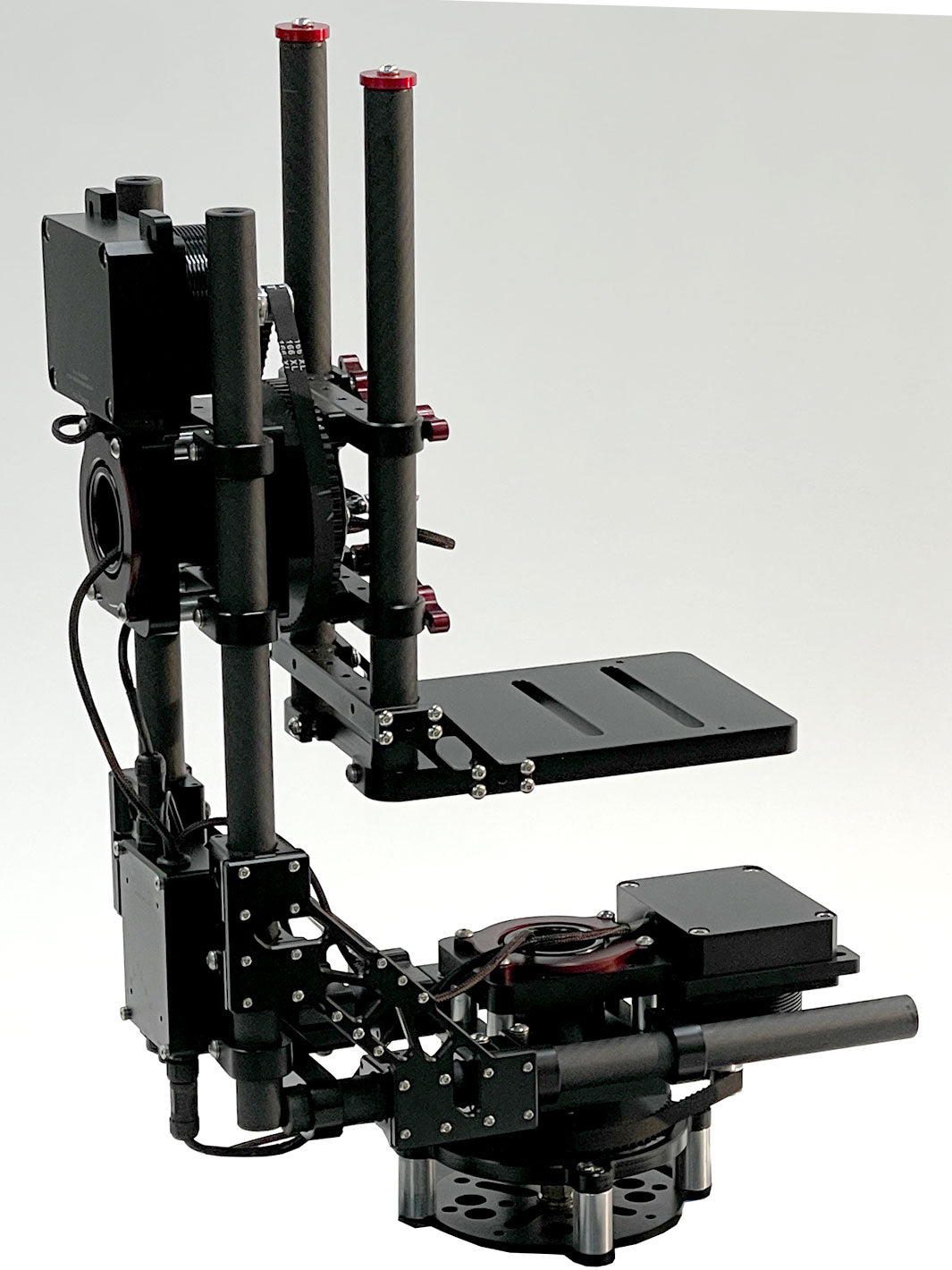

Motorized Pan & Tilt Head, Carbon Fiber
- In stock, ready to ship
- Backordered, shipping soon
Motorized Pan and Tilt Head with Focus and Zoom programmable servo motors.
For cameras up to 35 lbs.
Scarab Dolly 400 compatible.
Touch Screen Controller Included.
Highest-End Motion Control System designed for precision moves, with a resolution of 1.090.000 positions in 360 degrees.
Carbon Fiber Head can be used up or down, and controlled from up to 330 ft by cable serie RS485.
Built with high quality connectors which ensure reliability of control system.
Features:
☑️ For cameras up to 35 lbs.
☑️ 360 degree Pan and Tilt Movement.
☑️ Scarab Dolly 400 compatible.
☑️ Motors with zero backlash.
☑️ Made in USA
Touch Screen Controller:
☑️ Smooth manual Operation due to expo curves and movement profiles.
☑️ Meant for use on Live Events.
☑️ Interchangeable different types of joysticks, Hand-wheels and Pedals of your choice.
☑️ 3 programmable sequences with loop, back & forth at once
☑️ 9 Programmable Positions Easy to record and play back
☑️ 9 Programmable Keyframes. Super smooth interpolation curves
Controllers: Touch Screen Controller + Joystick or Hand Wheels (optional)
The new Digital Touch Screen allows the operator to set all controls as needed, including functions such as speed adjustments for Pan and Tilt, reverse switches, exponential acceleration curves, damping and joystick calibration.
The new Digital Touch Screen allows the operator to set all controls as needed, including functions such as speed adjustments for Pan and Tilt, reverse switches, exponential acceleration curves, damping and joystick calibration.
- Speed control gives the ability to change the speed between 0 to 100%.
- Expo curves are created to deliver different responses when the joystick is moved.
- The ramp control adjusts the electronic dampening system to ensure a smooth starts and stops.
- The wheel control adjustments change the Hand-Wheel responses from 0 to 10.
- Custom Joystick assignment: You can assign the joysticks as you see fit
Mitchell Mount adapter included.
Ready to ship in 4 weeks
